Stirrers

STIRRERS

1

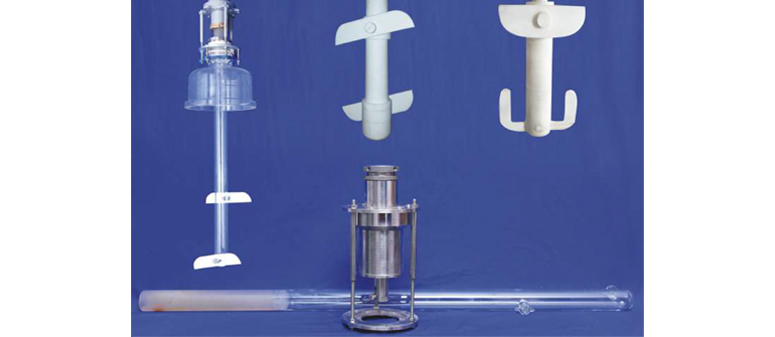

A variety of stirrer & stirrer drives are available to use glass vessels as agitated reaction equipment.

1. Stirrer material of construction: Glass, Stainless Steel or PTFE Lined.
2. Stirrer Design: Impeller stirrer with blades, Vortex stirrer, Propeller Stirrer & anchor Stirrer.
3. Stirring Drive: Non-flameproof or Flameproof stirrer drive, 192 RPM with Variable Frequency Drive.
4. Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.

Stirrers are assembled in a vessel using a chuck, seal and a reducer. A typical arrangement of stirrer fitted in a vessel is shown in the diagram.

stirrer 1

Size A B C D L
 20 L 250 150 450 25 825
 50 L 300 200 600 50 1050
 100 L 300 250 700 50 1200
 200 L 300 300 900 50 1450
 300 L 300 25 1000 50 1275



CHUCK & SEAL

This unit is suitable for use under corrosive conditions. Only glass and PTFE are exposed to process fluids. Bellow seal can be used under vacuum down to 10mm Hg absolute. Mechanical seal can be use under vacuum 1mm Hg absolute or under pressure permitted into glass vessels. Generally a reducer is require to connect the chuck and seal to top neck of the vessel.

chuck seal 1

Cat.Ref. Bellow Seal Cat.Ref. Mechannical Seal Vessel DN L L1 d
 CSA1 CSM1 20 L 50 300 250 25
 CSA1.5* CSM1.5* 50,100,200 L 80 360 300 47

STIRRER WITH TEFLON BLADES

These stirrers are used with liquid of low viscosity.

teflon blades 1

Cat.Ref. Vessel L L1 L2 L3 d D
 STB10 10 600 300 15 175 25 100
 STB20* 20 825 300 25 200 25 100
 STB50* 50 1050 300 25 200 47 150
 STB100* 100 1200 300 30 250 47 175
 STB200* 200 1450 300 30 325 47 200
 STB300 300 1275 350 30 425 59 275

VORTEX STIRRER

These stirrers are used with liquid of low viscosity containing small solid particles.

vortex 1

Cat. Ref. Vessel L L1 L2 d D
 STV50 50 1050 300 50 47 95
 STV100 100 1200 300 65 47 140
 STV200 200 1450 300 65 47 190

PROPELLER STIRRER

propeller 1

These stirrers are used with liquid of high viscosity or liquid with big solid particles.

Cat. Ref. Vessel L L1 L2 d D
 STP50 50 1050 300 50 47 95
 STP100 100 1200 300 65 47 145
 STP200 200 1450 300 65 47 210

STIRRING ASSEMBLY WITH BELLOW SEAL

A stirrer is assembled in chuck with bellow seal and appropriate reducer. This assembly is convenient to install on a vessel. The assembly consist of :

stirrer mechanicalseal 1

a. Glass stirrer STB / STV / STP
b. Chuck and mechanical seal CSA
c. Reducer PR
Cat. Ref. For Vessel Stirrer Used Chuck & Seal Reducer Used
 STBA20 20L STB20 CSA1 PR4/2
 STBA50* 50L STB50 CSA1.5 PR6/3
 STBA100* 100L STB100 CSA1.5 PR9/3
 STBA200 200L STB200 CSA1.5 PR12/3
 STBA300 300L STB300 CSA2 PR16/4
 STVA50 50L STV50 CSA1.5 PR6/3
 STVA100 100L STV100 CSA1.5 PR9/3
 STVA200 200L STV200 CSA1.5 PR12/3
 STVA300 300L STV300 CSA2 PR16/4
 STPA50 50L STP50 CSA1.5 PR6/3
 STPA100 100L STP100 CSA1.5 PR9/3
 STPA200 200L STP200 CSA1.5 PR12/3
 STPA300 300L STP300 CSA2 PR16/4
