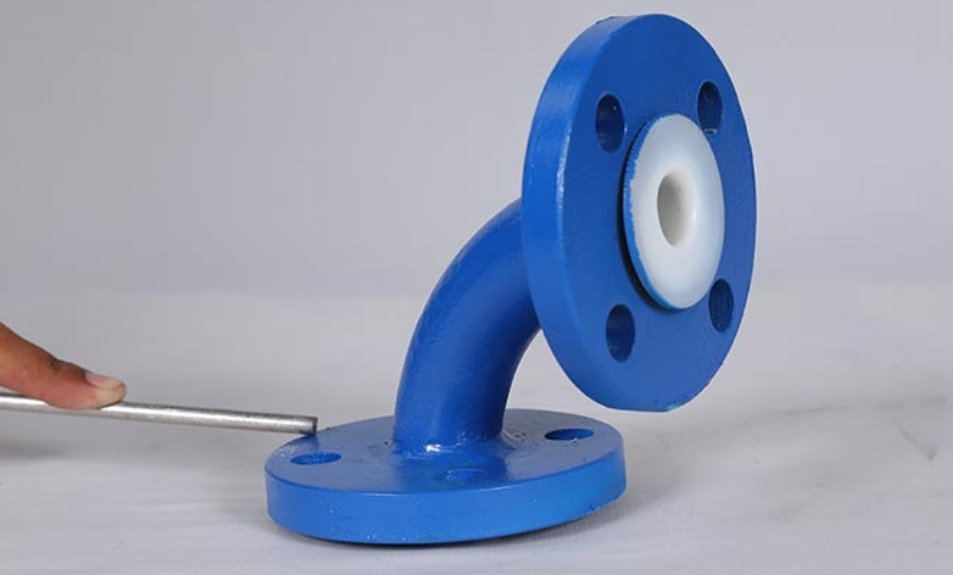

Lined Elbow 45° / 90°

BILL OF MATERIAL
PTFE Lined 45° Elbow
Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 450 Housing ASTM A-234 GR.WPB ASTM A-234 GR.WPB SCH-40 As Per Manufacturer STD.
2 Flange (Slip-On) Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5 150 Class
3 Polymer PTFE ASTM D 4895 ASTM F1545:15a
PTFE Lined 90° Elbow
Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 900 Housing ASTM A-234 GR.WPB ASTM A-234 GR.WPB SCH-40 As Per Manufacturer STD.
2 Flange (Slip-On) Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5 150 Class
3 Polymer PTFE ASTM D 4895 ASTM F1545:15a
PFA / PP / PVDF / HDPE Lined 45° Elbow
Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 450 Cast Housing ASTM A-234 GR.WPB ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
P.P. ASTM D 4101
PVDF ASTM D 3222
HDPE ASTM D 3350
PFA / PP / PVDF / HDPE Lined 90° Elbow
Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 900 Cast Housing Ductile Iron ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
P.P. ASTM D 4101
PVDF ASTM D 3222
HDPE ASTM D 3350
