Design, Standard and Features

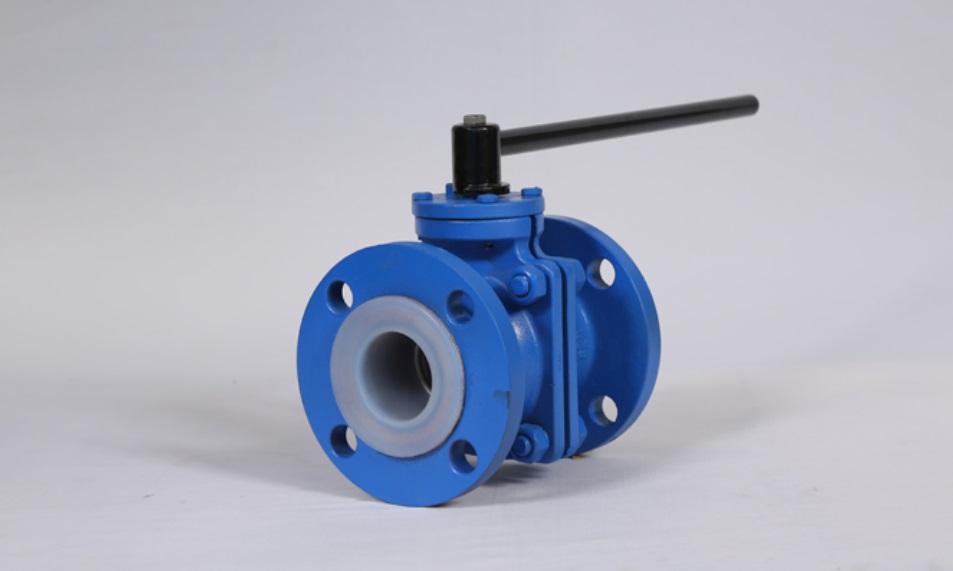

  • Interior valve bodies as well as the stem and ball are individually lined with PFA or PVDF/FEP

  • Ball is fully encapsulated in PFA/FEP. Ceramic Balls are also available which are interchangeable
  • Anti-blow out stem assembly for preventing stem blow out even when top gear is disassembled
  • Short pattern face to face dimension in accordance with ANSI B16.10 and ANSI B 16.5, 150 lbs.(flange dimension) - facilitating replacement of fully lined or sleeved plug valves with Transflow Process Systems Pvt Ltd lined ball valves without altering existing pipework
  • Valves supplied with anti-static devices for protection against potentially dangerous electrostatic discharge
  • Free floating Ball Valve Principle ensures the ball seals against the downstream seat ring giving a positive sealing force even when line pressure is low
  • All inherent design features of a conventional ball valve such as low torque, quarter-turn operation, bubble tight shut off and a minimum pressure drop
  • Valves have been satisfactorily tested for Helium Leak test to meet with ASME Sec V Article 10; witnessed by Independent Inspection Agency(TUV)
  • Valve bodies available in Ductile iron material - ASTM A395 (60-40-18) & in CAST carbon steel ASTM A216WCB
  • Valve bodies can be supplied in all grades of stainless steel material as per request

Refer Technical Datasheet for material specifications of individual components

  • Requires significantly lower torque for operation than equivalent plug valves
  • Easy manual operation and considerably low actual figures
