Jackets

Glass Jackets

For heating of pipe and for controlling the temperature throughout the column, the jacketed pipe sections are provided.

Glass jacket is sealed to the pipe section using Viton ‘O’ ring and other sealing compositions.

The seal prevents impermissibly high stresses between two tubes and allows the movement which comes due to thermal expansion. Maximum operating pressure in the jacket

DN 80 – DN 150 1.0 bar
DN 225 – DN 300 0.5 bar

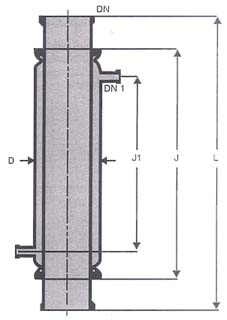

Cat.Ref. DN L d DN1 J J1
 PSD3/1000 80 1000 100 25 850 750
 PSD4/1000 100 1000 150 25 850 750
 PSD6/1000 150 1000 225 25 850 700
 PSD9/1000 225 1000 300 25 850 700
 PSD12/1000 300 1000 400 25 850 650
