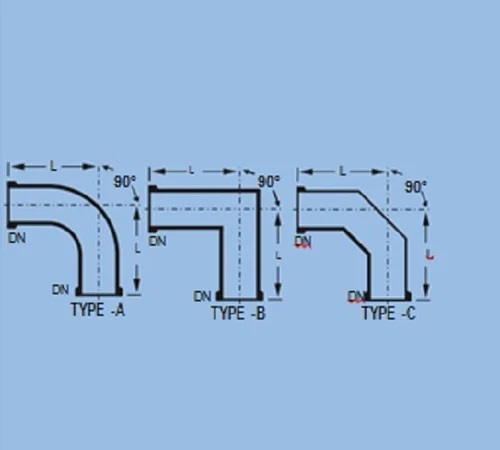

Glass Pipeline components 90 bends

Cat.Ref. DN L TYPE
 PB0.7/90 15 50 A
 PB1/90* 25 100 A
 PB1.5/90* 40 150 A
 PB2/90* 50 150 A
 PB3/90* 80 200 B
 PB4/90* 100 250 B
 PB6/90* 150 250 B
 PB9/90 * 225 375 B
 PB12/90 * 300 450 B

Bends in 80 and 100 degrees are also available with the same dimensions.

Bends DN 400/DN 450/DN 600 on a request basis.
