1

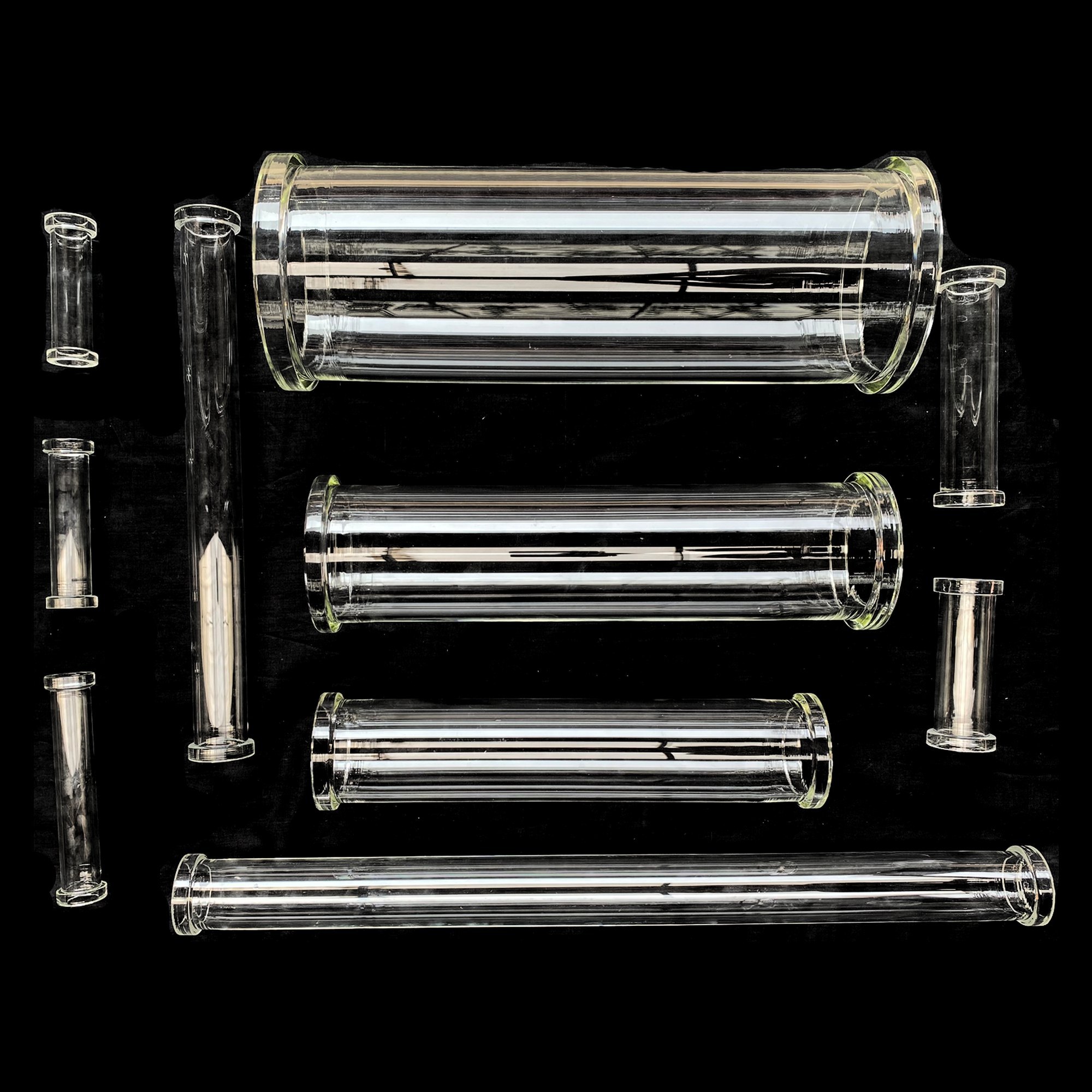

pipe section

DN L 15 Cat Ref. 25 Cat Ref. 40 Cat Ref. 50 Cat Ref.
100 PS0.7/100  PS1/100* PS1.5/100* PS2/100
150 PS0.7/150  PS1/150* PS1.5/150* PS2/150*
200 PS0.7/200 PS1/200 PS1.5/200 PS2/200
250 PS0.7/250 PS1/250 PS1.5/250 PS2/250
300 PS0.7/300 PS1/300 PS1.5/300 PS2/300
400 PS0.7/400 PS1/400 PS1.5/400 PS2/400
500 PS0.7/500 PS1/500 PS1.5/500 PS2/500
600 PS0.7/600 PS1/600 PS1.5/600 PS2/600
750 PS0.7/750 PS1/750 PS1.5/750 PS2/750
900 PS0.7/900 PS1/900 PS1.5/900 PS2/900
1000 PS0.7/1000 PS1/1000* PS1.5/1000* PS2/1000*



pipelineN2 1

DN L 80 Cat.Ref. 100 Cat.Ref. 150 Cat.Ref.
150  PS3/150*  PS4/150  PS6/150
200  PS3/200  PS4/200  PS6/200
250  PS3/250*  PS4/250*  PS6/250*
300  PS3/300  PS4/300  PS6/300*
400  PS3/400  PS4/400  PS6/400
500  PS3/500  PS4/500  PS6/500
600  PS3/600*  PS4/600*  PS6/600
750  PS3/750  PS4/750  PS6/750
900  PS3/900  PS4/900  PS6/900
1000  PS3/1000*  PS4/1000*  PS6/1000*



DN L 225 Cat.Ref. 300 Cat.Ref. 400 Cat.Ref.
300  PS9/300  PS12/300  PS16/300
400  PS9/400  PS12/400  –
500  PS9/500  PS12/500  PS16/500
600  PS9/600  PS12/600  –
750  PS9/750  PS12/750  PS16/750
900  PS9/900  PS12/900  –
1000  PS9/1000*  PS12/1000*  PS16/1000
1200  PS9/1200  PS12/1200  PS16/1200
1500  PS9/1500  PS12/1500  PS16/1500



DN L 450Cat.Ref. 600 Cat.Ref. 800 Cat.Ref. 1000 Cat.Ref.
300  PS18/300  –  –  –
500 PS18/500  PS24/500  PS32/500  PS40/500
750  PS18/750  –  –  –
1000 PS18/1000  PS24/1000  PS32/1000  PS40/1000
1200  PS18/1200  –  –  –
1500 PS18/1500*  PS24/1500*  PS32/1500  –
