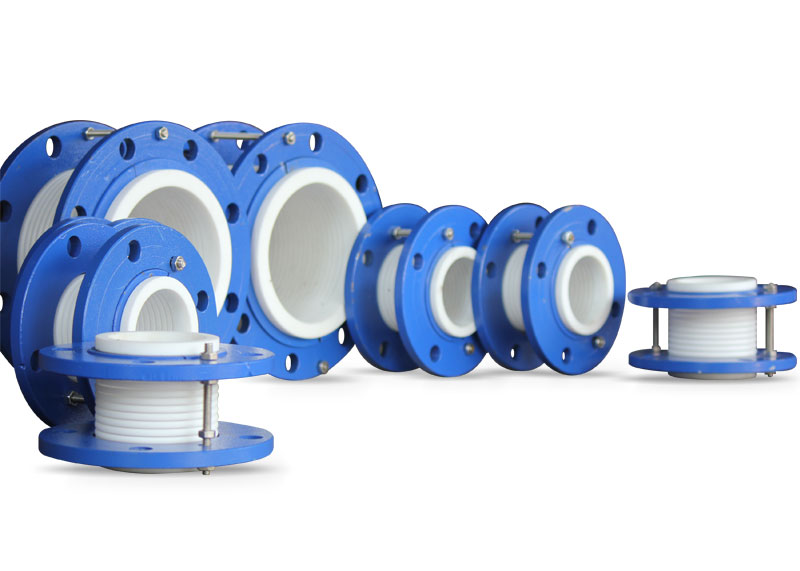

A PTFE-lined bellow is a type of flexible connector, often used in piping systems, that combines the flexibility of a bellow with the chemical resistance of PTFE (Polytetrafluoroethylene). This lining protects the bellow from corrosive fluids, making it suitable for harsh chemical environments. PTFE-lined bellows are designed to absorb movement, vibration, and thermal expansion in piping, while also preventing contamination and corrosion.

Here's a more detailed breakdown:

Key Features and Benefits:

  • Chemical Resistance:

    The PTFE lining provides excellent resistance to a wide range of chemicals, acids, and solvents, making it ideal for handling aggressive fluids.

  • Flexibility:

    PTFE-lined bellows can accommodate axial, lateral, and angular movements in piping systems, allowing for thermal expansion and vibration absorption.

  • Corrosion Protection:

    The PTFE lining protects the metallic or fabric structure of the bellow from corrosion, extending the lifespan of the joint.

  • Temperature Stability:

    PTFE can withstand high temperatures, making these bellows suitable for various industrial applications.

  • Applications:

    They are commonly used in the chemical processing, pharmaceutical, and food processing industries, as well as in semiconductor manufacturing where static electricity is a concern.

  • Versatility:

    PTFE-lined bellows can be used with different types of piping materials, including glass, plastic, and metal.

Types of PTFE Bellows:

  • Expansion Joints:

    These are designed to absorb thermal expansion and vibration in piping systems.

  • Flexible Connectors:

    They accommodate movement and misalignment in piping, while also providing a seal.

  • Bellows for Vacuum Applications:

    Special designs are available for use in vacuum systems, often with an internal sleeve to support the convolutions.

  • Hinged Bellows:

    These allow for angular movement while restricting axial and lateral displacement.

In essence, PTFE-lined bellows offer a robust and reliable solution for maintaining the integrity and performance of piping systems in demanding environments by combining the flexibility of a bellow with the exceptional chemical resistance of PTFE.
